Land Cruiser Custom Length Standard Rear Driveshaft

Made to Order Custom length 2 Days Turnaround

Choose your Transfer Case Flange, Rear Flange, & Tubing Size

Max Length with 2.5” Tubing is 60 inches

For 3” Tubing make sure you have the clearance

 Key product features

• Uses 1310 series universal joints. These are the most common size of u-joint there is. Replacement joints are much easier to find than stock Toyota style joints.
• Shaft uses 2.5" diameter .083" or 3” steel tubing. Better quality tubing than stock Toyota shafts use.
• Can be built using our greaseable universal joints or non-greaseable joints.
• Best of all every shaft is custom built to your custom length and specifications. So you can be sure that you will get the right thing the first time around.

If your Toyota Land Cruiser is not lifted and you are not experiencing vibrations due to increased angles, this is the shaft for you. A great option for replacing the old worn out stock drive shaft with something that is upgraded without departing from the stock design which uses a single u-joint at each end. This is a rear shaft only and can be made any length you need.

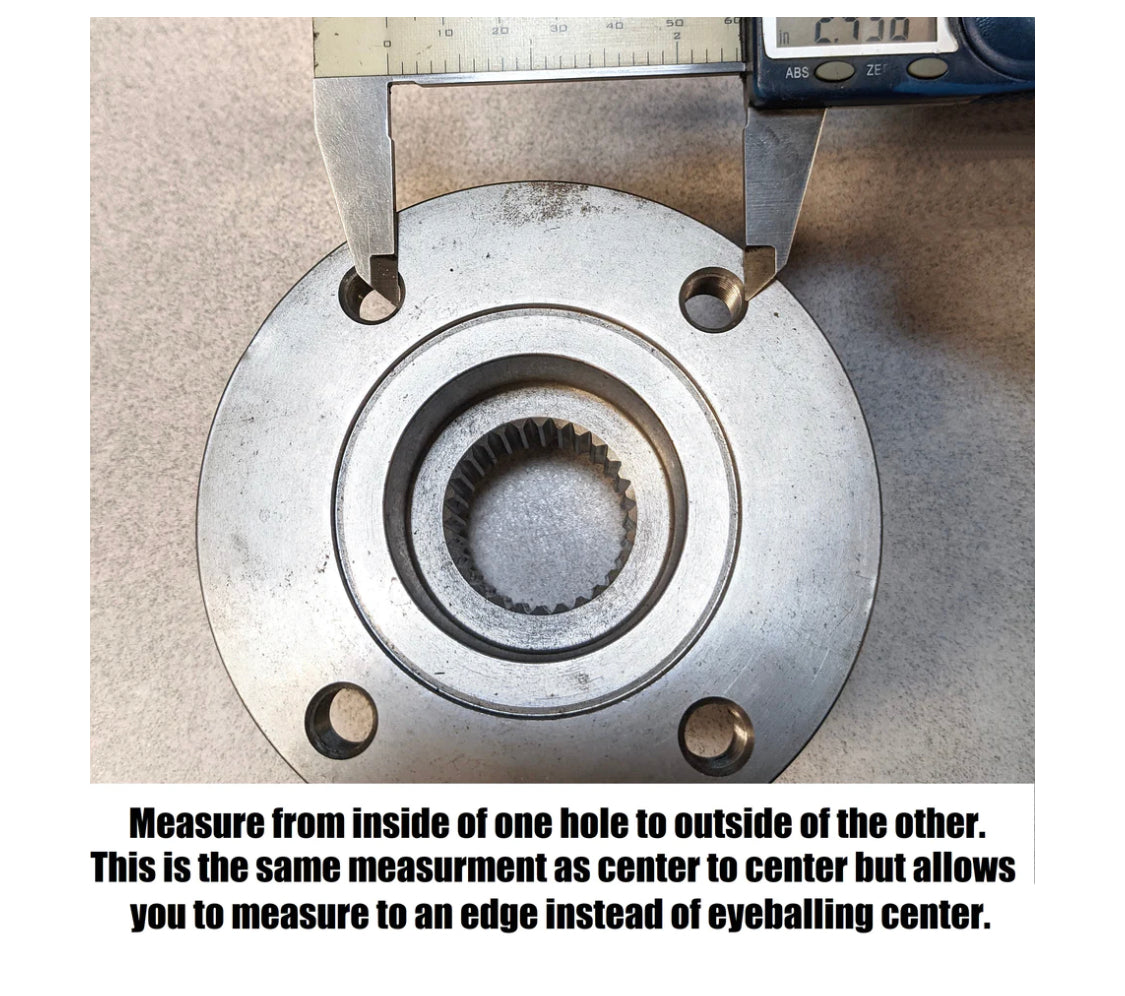

Toyota drive shaft lengths and flange patterns vary. In our experience there is no single standard length or flange patterns for any particular model. To ensure that you get the right thing you will need to take a couple measurements before ordering your drive shaft. You need to measure the distance from your transfer case flange to your differential flange. You will also need to measure the bolt pattern at each end. It is important that you measure the bolt pattern on each end because they are often not the same at both ends
