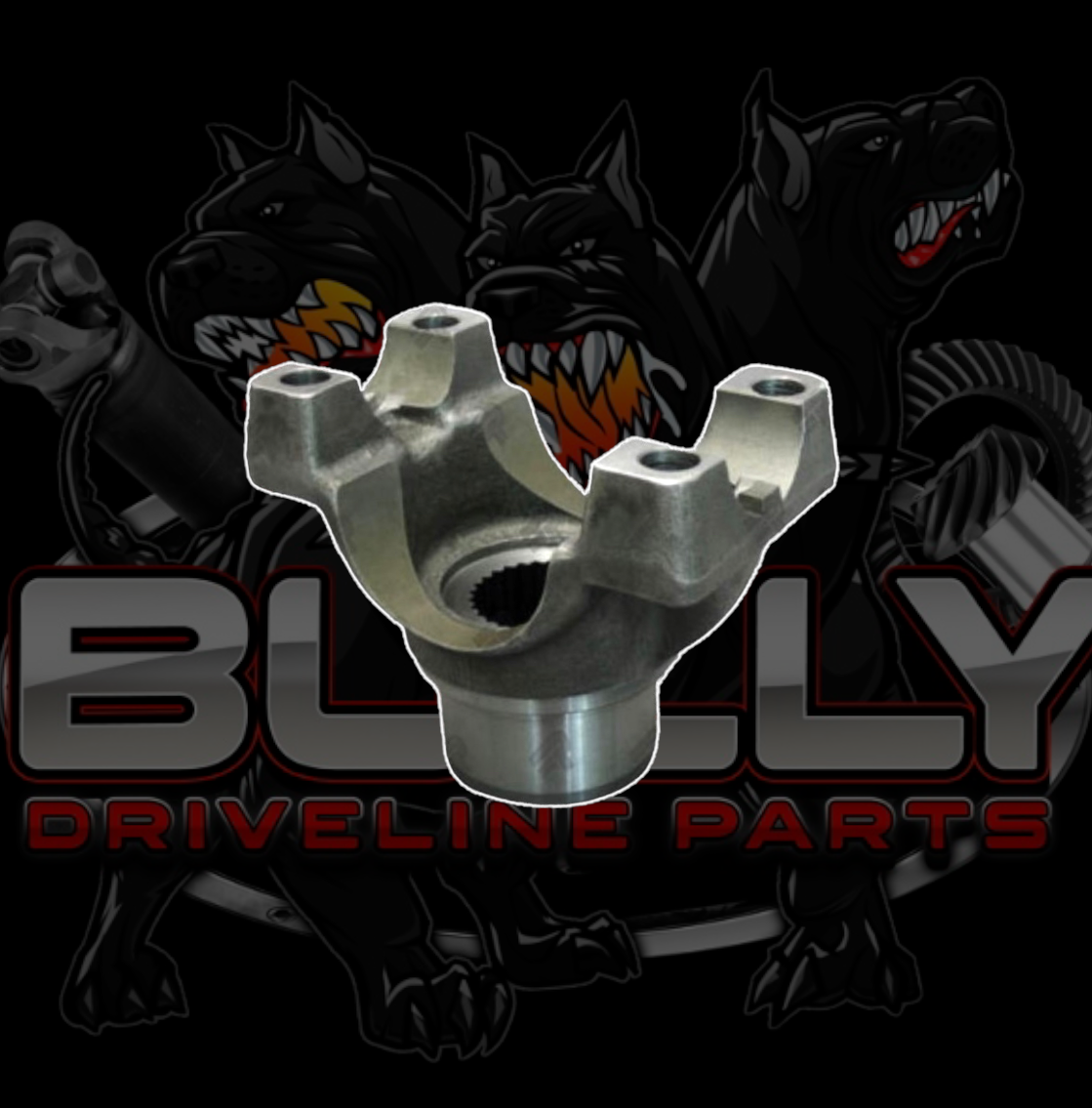

Dana 60 / Dana 70 1350 Series Pinion Yoke *High Angle* U-Bolt Kit Included

Series: 1350

Splines: 29

Spline Diameter: 1.276”

Hub Diameter: 1.875”

Thru Hole: 1.50”

C/L to End: 3.375”

Style: U-Bolt 3-94-18x

Diff Model: Dana 60/ Dana 70

THIS FORGED YOKE FITS THE DANA 60 AND 70 DIFFERENTIALS. IT TAKES THE DANA U-BOLT KIT 3-94-18X. THIS YOKE IS CUT DEEP TO ALLOW UP TO 30 DEGREES OF ANGLE FOR THE OFF ROAD SPECIALIST. THIS IS THE SAME AS THE DANA PART NUMBER 3-4-5731-1X.

APPLICATIONS FOR THE DANA 60 1 TON CHRYSLER VAN: 1970 - 1983 (REAR) 1 TON DODGE PICKUP: 1976 - 2001 (FRONT) 1 TON DODGE PICKUP: 1983 - 1995 (REAR) 1 TON GM PICKUP: 1977 - 1990 (FRONT) 1 TON GM PICKUP: 1979 - 1987 (REAR) 1 TON GM VAN: 1979 - 1987 (REAR) 3/4 TON DODGE PICKUP: 1963 - 2002 (REAR) 3/4 TON DODGE PICKUP: 1980 - 2002 (FRONT) 3/4 TON DODGE PICKUP: 1985 - 2001 (FRONT) 3/4 TON GM PICKUP: 1964 - 1972 (REAR) 3/4 TON GM VAN: 1967 - 1972 (REAR) CHALLENGER: 1970 - 1974 (REAR) E250: 1969 - 2002 (REAR) E350: 1988 - 2001 (REAR) F100: 1965 - 1971 (REAR) F250: 1954 - 2002 (REAR) F250: 1978 - 1979 (FRONT) F250: 2002 - 2006 (FRONT) F350: 1979 - 2003 (FRONT) RAM SRT-10: 2004 - 2006 (REAR) 1 TON DODGE PICKUP: 1987 - 1993 (FRONT) 3/4 TON DODGE PICKUP: 1987 - 1993 (FRONT) 3/4 TON DODGE PICKUP: 1987 - 1993 (FRONT) E250: 1974 - 1984 (REAR) APPLICATIONS FOR THE DANA 70 3/4 TON CHRYSLER VAN: 1984-2002 (REAR, 70U) 1 TON CHRYSLER VAN: 1984 - 2002 (REAR, 70U) 1 TON DODGE PICKUP: 1967 - 1992 (FRONT) 1 TON DODGE PICKUP: 1975 - 1975 (FRONT) 1 TON DODGE PICKUP: 1983 - 1984 (REAR) 1 TON DODGE PICKUP: 1984 - 2006 (REAR, 70U) 1 TON GM VAN: 1984 - 1990 (REAR, 70U) 1 TON GM PICKUP: 1973 - 1987 (REAR) 1 TON GM PICKUP: 1974 - 2001 (REAR, MODEL HD) 1 TON GM PICKUP: 1990 - 1991 (REAR) 3/4 TON DODGE PICKUP: 1958 - 1984 (REAR) 3/4 TON DODGE PICKUP: 1985 - 2001 (REAR, 70U) 3/4 TON DODGE PICKUP: 1969 - 1974 (FRONT) F350: 1961 - 1983 (REAR) F350: 1980 - 2002 (REAR, 70U) F350: 1980 - 1997 (REAR, MODEL HD) E250: 1983 - 1997 (REAR, 70U) F250: 1983 - 1997 (REAR, 70U)
