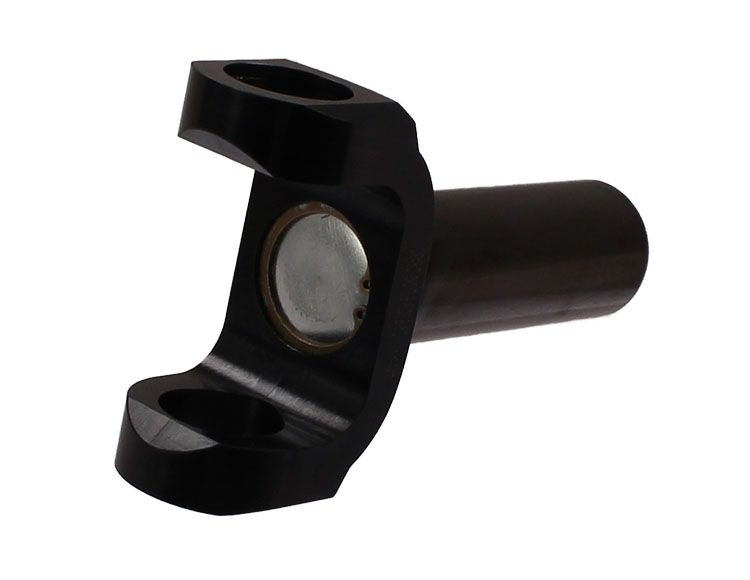

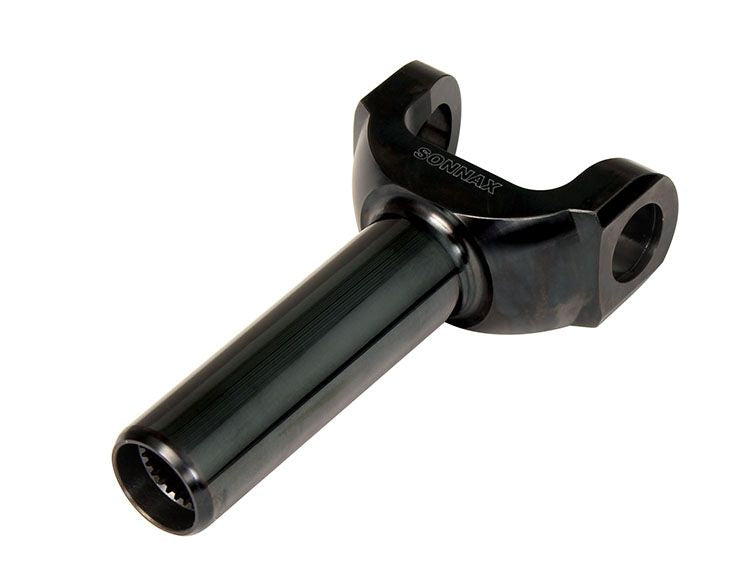

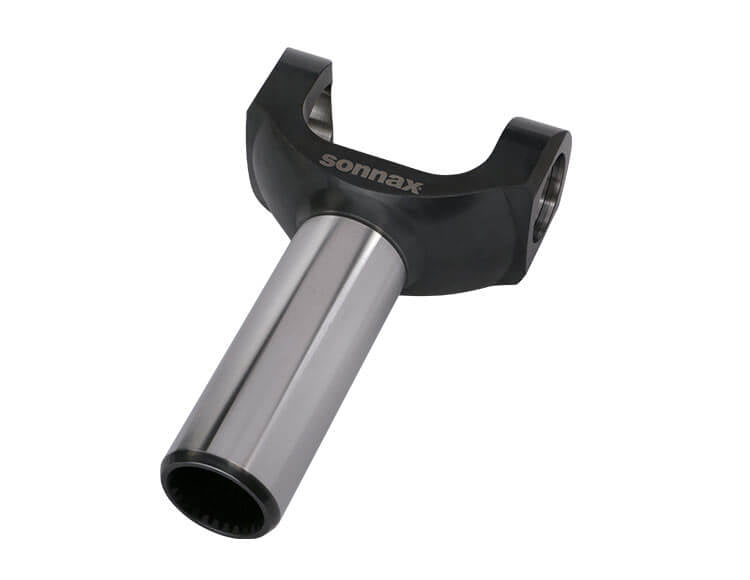

Sonnax Chromoly Slip Yoke for Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed

Sonnax Chromoly Slip Yoke for Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed

$163.99 USD
$163.99 USD
Sale Sold out
Shipping calculated at checkout.
U-Joint Size

Quality & Engineering You Can Trust

Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed

Sonnax forged chromoly performance slip yokes are an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The slip yokes come in a few different series u-joints and fits a variety of applications, including those listed here. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track

 Sonnax Slip Yoke List

  • Counter Bore (Y/N): No
  • Material: Forged Chromoly
  • Spline Type: Full
  • U-Joint Series: 1350
  • Spline Tooth Count: 27
  • Journal Dia.: 1.503"
  • CL to End Length: 5.470"
  • Length: 6.340"
  • Weight: 2.457lbs
  • Barrel Length: 3.880"
  • Counter Bore (Y/N): Yes
  • Spline Type: Counterbore
  • U-Joint Series: 1350
  • Material: Forged Chromoly
  • Spline Tooth Count: 27
  • Journal Dia.: 1.503"
  • CL to End Length: 6.940"
  • Length: 7.810"
  • Length of Counter Bore: 0.410"
  • Weight: 3.113lbs
  • Barrel Length: 5.130"

  • Counter Bore (Y/N): Yes
  • U-Joint Series: 1330
  • Spline Type: Counterbore
  • Spline Tooth Count: 27
  • Journal Dia.: 1.503"
  • CL to End Length: 6.760"
  • Length: 7.630"
  • Length of Counter Bore: 0.410"
  • Weight: 3.089lbs
  • Barrel Length: 5.000".
  • Counter Bore (Y/N): No
  • Spline Type: Full
  • U-Joint Series: 1310
  • Journal Dia.: 1.503"
  • Spline Tooth Count: 27
  • CL to End Length: 5.470"
  • Length: 6.220"
  • Weight: 2.660lbs
  • Barrel Length: 3.880"

How to Determine a U-Joint Series

Series             Width    Cap Size

3R 2.562 1.125
1310 3.219 1.062
1330 3.622 1.062
1350 3.622 1.188
1410 4.188 1.188
1480 4.188 1.375
1485 4.178 1.375
1550/1555 4.964 1.375 outside snap rings
